EAQ - Aluminium Quadrant Trim
REF :EAQ
Add to Product Board

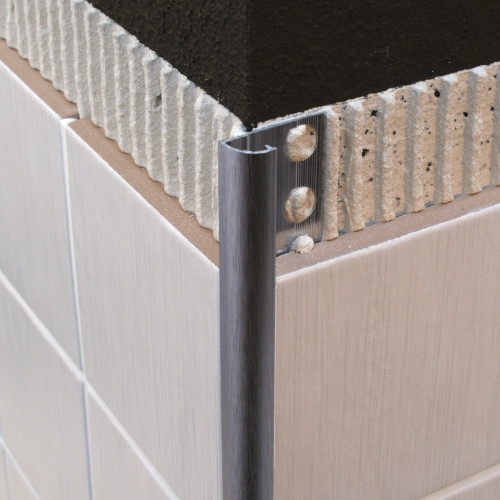

An extruded aluminium profile with a fully rounded quadrant face designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall or floor installations. Available in a wide range of heights and finishes with corresponding Internal and External Aluminium corners avoiding the unsightly and exposed 45º cuts.
Where appropriate, trims are supplied with transparent protective film offering added protection during transport, storage and installation.
Available in bespoke powder coating to any RAL number on request.
| Product | |
| Height (mm) | 6, 8, 10, 12 |
| Length (m) | 2.5 |
| Box Quantity | 20 |
| Title | |
|---|---|
| EAQ Datasheet | EAQ Datasheet |

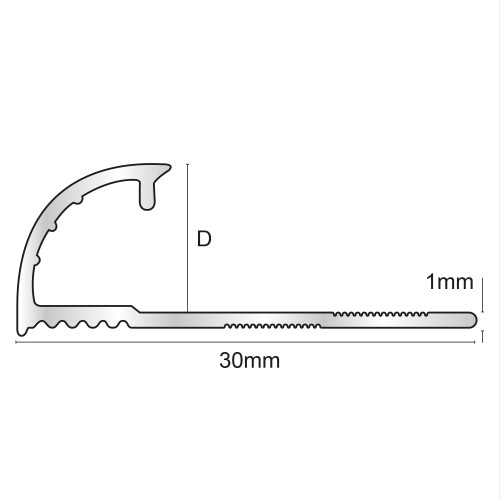

| EAQ Drawing | EAQ Drawing |
| EAQ Fiche technique | EAQ Fiche technique |
- Select EAQ according to tile thickness
- Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
- Press the perimeter of the tiled covering.
- Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
- Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approx. 1mm lower.
- Fill the joint completely with grout.
