EAD - Aluminium Angle Trim
REF :EAD
Add to Product Board

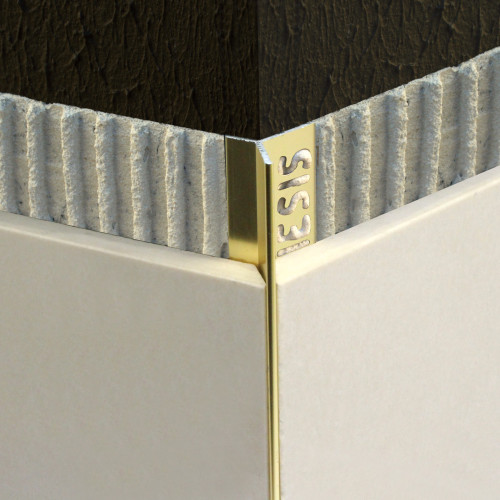

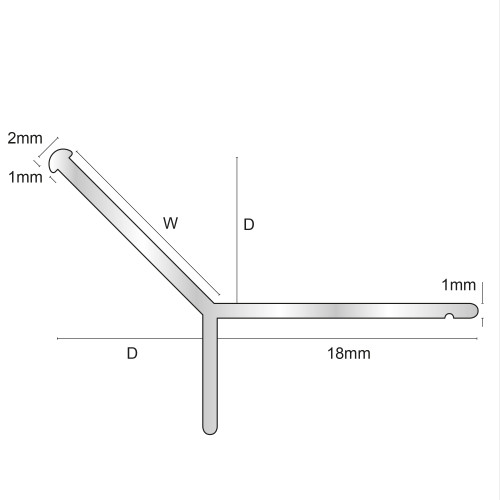

EAD is an Aluminium profile for 90 degree external corners, with only a 2mm seen edge it offers a minimalistic design and discreet finishing edge.
One flange offers anchoring positions to secure the profile during and after installtion, it is the perfect compliment to mitred tiles offering protection with a modern finish.
Available in bespoke powder coating to any RAL number on request.
| Product | |
| Height (mm) | 8,10,12 |
| Length (m) | 2.5 |
| Box Quantity | 20 |
| Title | |
|---|---|
| EAD Datasheet | EAD Datasheet |
- Select EAD according to tile thickness.
- Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
- Press the perforated anchoring leg of the EAD into the tile adhesive and align, mechanical fix if required.
- Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
- Fill the joint completely with grout.
- The EAD profile is designed to protrude slightly to provide protection against damage to the edge of the tiles.
